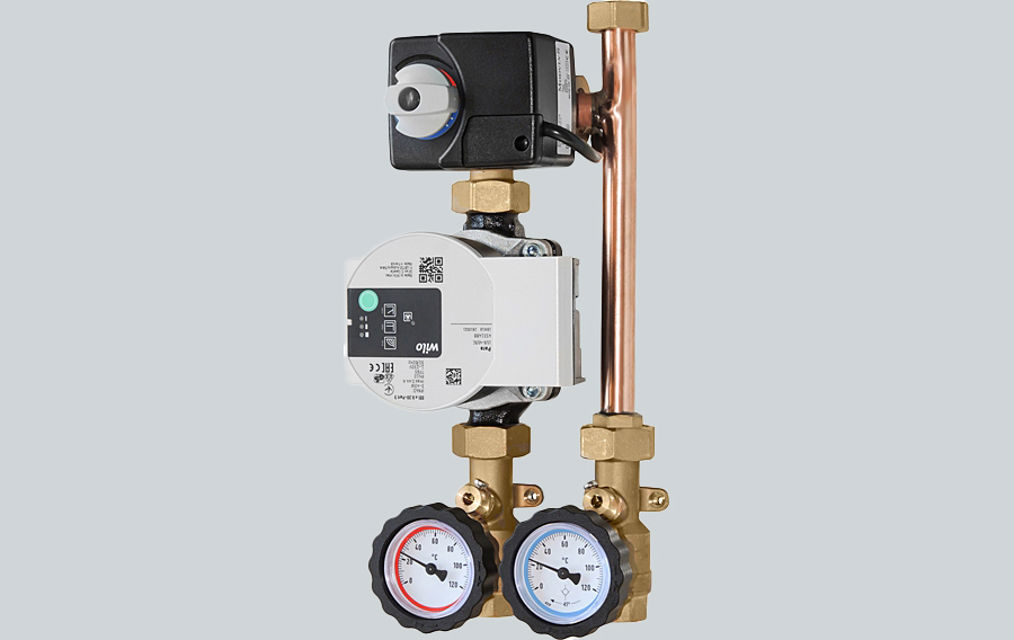

Mixed motorized circuit pump unit

For ModvBox cabinet. Supplied with Wilo Para 15-130/6 SC circulator. Equipped with DN 20 shut-off valve on both flow and return, 0°÷120°C thermometer and check valve that can be disabled in case of system maintenance. Each valve is provided with a sensor pocket, should the boiler electronics require it.

Nominal power of 30 kW (with ΔT=20 K)
at the flow rate of 1300 l/h
(residual head 3.5 mH2O)
Wilo Para 15-130/6 SC circulating pump
Kvs value: 4.0
230V 3-point actuator, 105 s;
proportional 0-10V on request.
Centre distance 70 mm
PN 10, max temperature 95°C
3/4” female connections

Code: 402554-M3-P6-TRM
