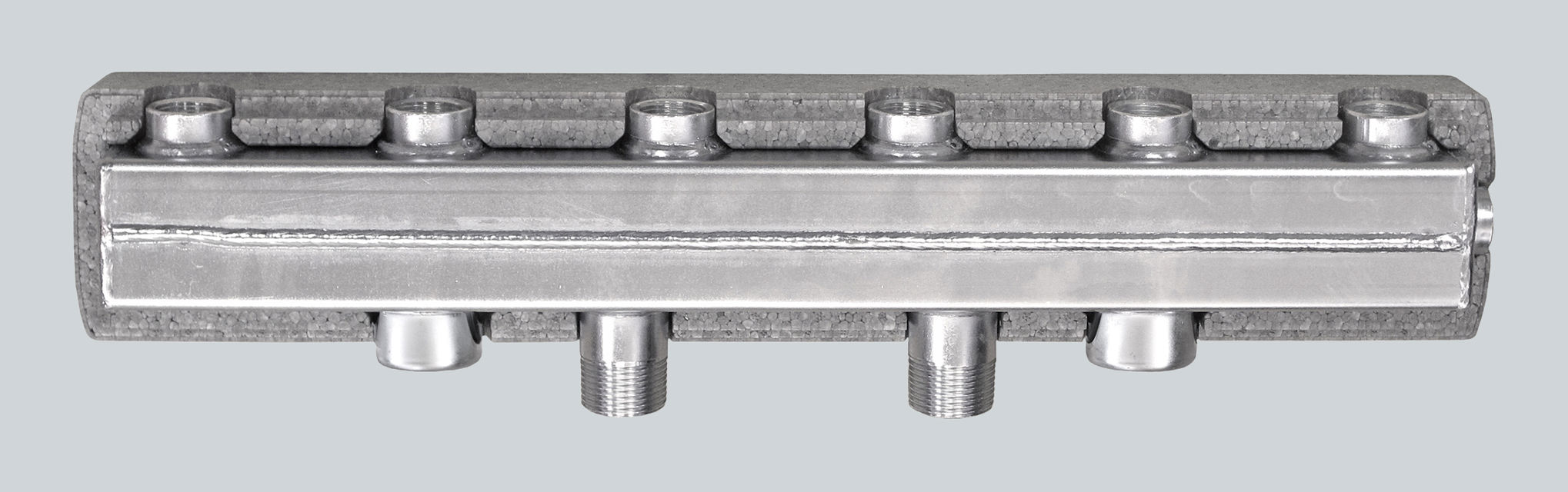

HV 60/90
Zone manifold (2 m3/h)
Zone manifold with insulation. 1/2” Female side connection for equipments.
Maximum flow rate up to 2 m3/h - Max. 6 bar.
Insulation box section dimensions: 100 x 100 mm.
Connections to the pump units:
3/4” Female, centre distance 90 mm (pitch 180 mm).
Connection to the hydraulic compensator code HW60/125-04 with
threaded end 1” Male (centre distance 125 mm); for the connection
use n. 2 sets code 04629SET (1”).
Code: HV60/90-2
Code: HV60/90-3
