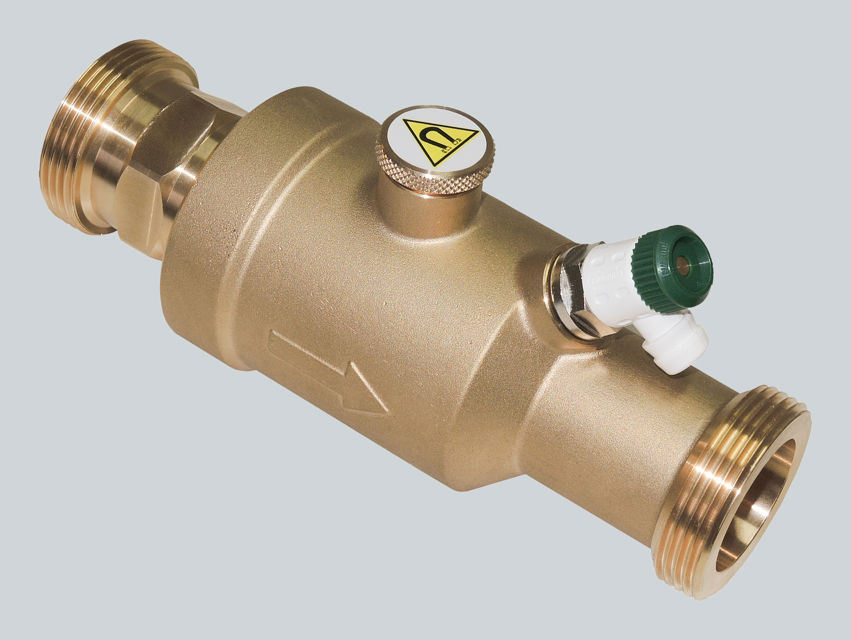

Art. 652 DN25
MAGNETIC FILTER
Function
The magnetic filter is a device that allows to collect sludge and ferrous particles in hydraulic circuits, residues that can compromise the operation of many components such as boilers, synchronous circulating pumps, heat and magnetic meters, etc.
Its particular internal conformation, developed by BRV in its laboratories, exploits some simple principles of physics that allow to create, by pressure difference, an area of calm in the fluid vein where sludge and ferrous particles are deposited, since attracted by a powerful neodymium magnet.
These can then be removed easily from the system by acting on the drain valve, an operation that we suggest to repeat at each plant start-up especially in the old ones that are more subject to corrosion and therefore where the concentration of sludge and ferrous particles is higher.
Features
• Compact dimensions combined with very low head losses
• No maintenance or cleaning of the device is required, if not periodic discharge of sludge collected through the drain valve
• Neodymium magnet with attraction force of 4.5 kg and magnet strenght 13.000 Gauss
• Simple installation in heating pump units or directly in-line in the circuit (vertical assembly)
• Flow rates up to 5.000 l/h
• Compatible with anti-freeze fluids (glycol ≤ 50%)
• Compact dimensions combined with very low head losses
• No maintenance or cleaning of the device is required, if not periodic discharge of sludge collected through the drain valve
• Neodymium magnet with attraction force of 4.5 kg and magnet strenght 13.000 Gauss
• Simple installation in heating pump units or directly in-line in the circuit (vertical assembly)
• Flow rates up to 5.000 l/h
• Compatible with anti-freeze fluids (glycol ≤ 50%)
PN 10. Maximum temperature 110°C
External connections and Kvs available:
DN25: 1”1/2 x 180 mm - Kvs 21
Code 1”1/2 Kvs 21: 106652-21
